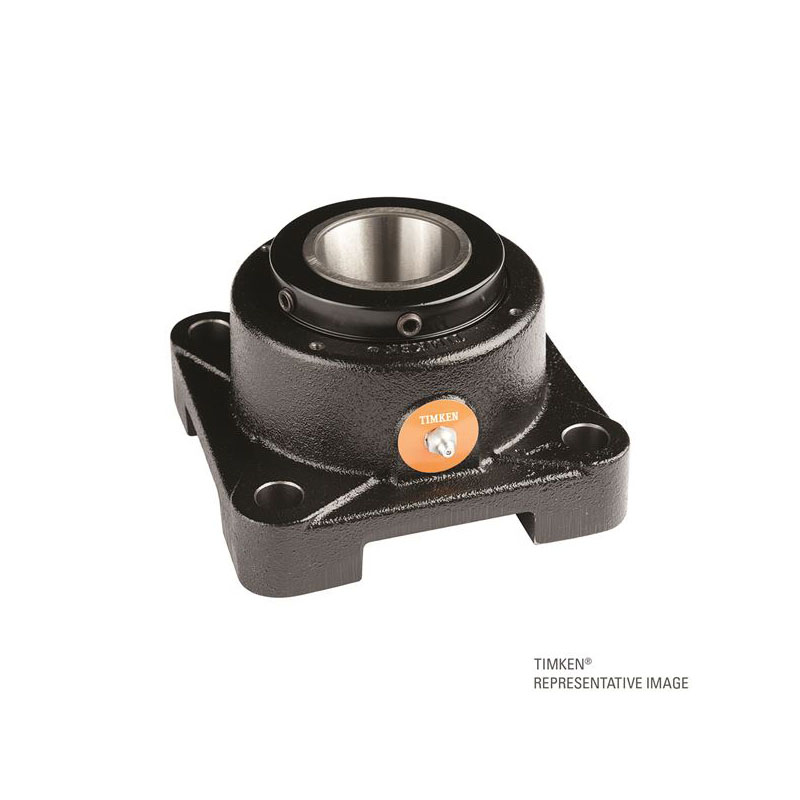

Timken Part Number E-4BF-TRB-4, Type E Flange: 4-Bolt Bearing.
Type E tapered roller bearing housed units are available in a wide variety of sizes and configurations to meet the requirements of demanding applications. Popular part numbers are in stock for immediate availability. Metric sizes are also available in shaft diameters ranging from 35 mm to 125 mm.
Shaft Size: 4 in
Shaft Size Type: Imperial
UPC Code: 053893544281
Dimensions
Dimension B: 6-1 / 4 in
Dimension L: 10-1 / 4 in
Dimension A: 5-5 / 8 in
Dimension J: 7-3 / 4 in
Dimension A2: 1/4 in
Bolt Diameter: 7/8 in
Dimension A1: 2-1 / 8 in
Dimension D 1: 8-1 / 4 in
Dimension d1: 6-1 / 16 in
Factores radiales y de empuje; Límites de carga de velocidad y deslizamiento
e: 0.49
X (if Fa / Fr ? e): 0.87
Y (if Fa / Fr ? e): 1.77
X (if Fa / Fr> e): 0.7
Y (if Fa / Fr> e): 2.14
K Factor: 1.23
C90 Dynamic Load Rating 2: 26900 lb
C0 Static Load Rating: 154000 lb
Fa-max Maximum Permissible Thrust Load 3: 6908 lb
Fr-max Maximum Allowable Slip Fit Radial Load 4: 22000 lbs.
Max. Speed 5: 1530 rpm
