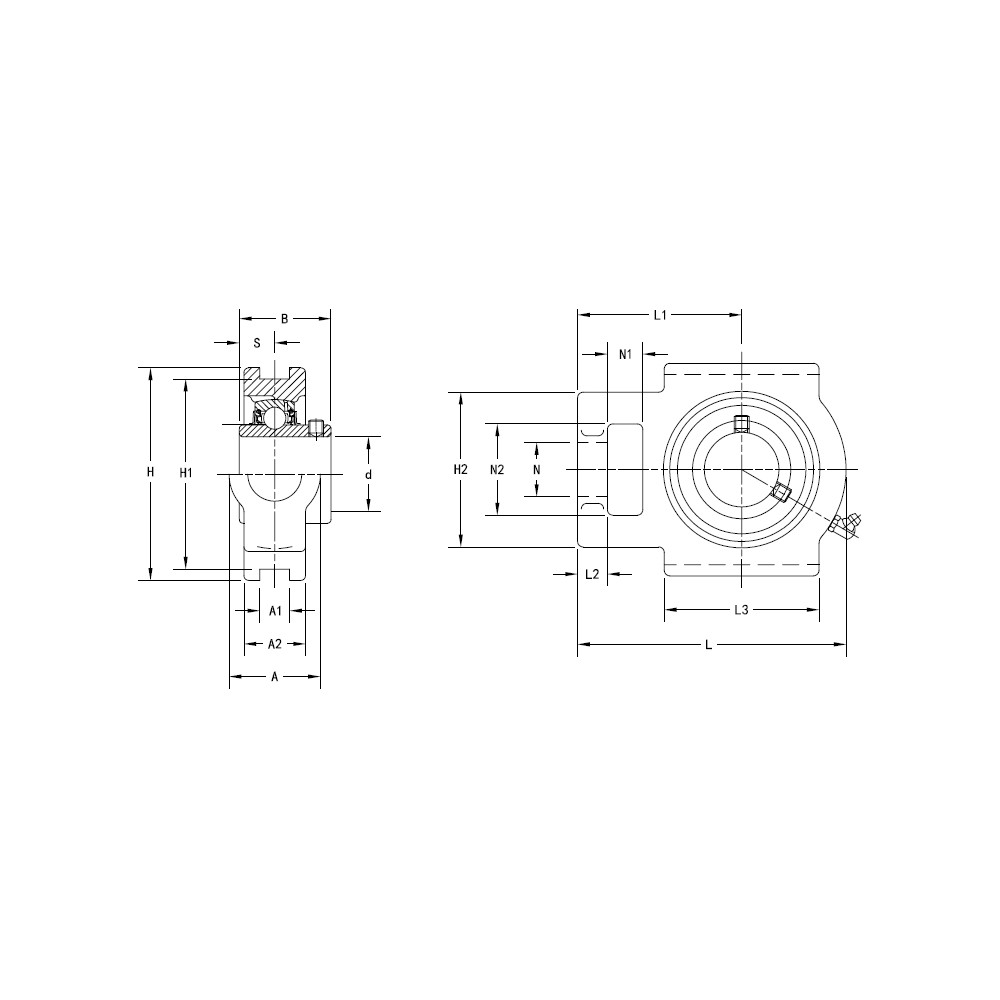

Soportes para rodamientos de bolas Serie UCT. Unidades con alojamiento Bloqueo con tornillo de fijación
d = 1 3/4 in
Peso = 5.5 lb
Perno = M6
A = 49.00 mm 1.929 in
A1 = 16.0 mm 0.63 in
A2 = 35.00 mm 1.378 in
H = 117.00 mm 4.606 in
H1 = 102.00 mm 4.016 in
H2 = 83.00 mm 3.268 in
L = 144.00 mm 5.669 in
L1 = 87.00 mm 3.425 in
L2 = 16.00 mm 0.625 in
L3 = 83.00 mm 3.281 in
N = 29.00 mm1.142 in
N1 = 19.00 mm 0.750 in
N2 = 49.00 mm 1 15/16 in
B = 49.20 mm 1.937 in
S = 19 mm 0.748 in
